plastic pelletizer cutter machine is a device used in the plastics processing industry to cut plastic strips into pellets. The following is a brief introduction:
It is primarily used to cut molten or cooled plastic strips into uniform plastic pellets. It is particularly suitable for pelletizing thermoplastics such as PVC, ABS, PE, and PP, and is a key piece of equipment in plastic recycling and modification.
Structural Components of Plastic Pelletizer - Plastic Pelletizing Machine

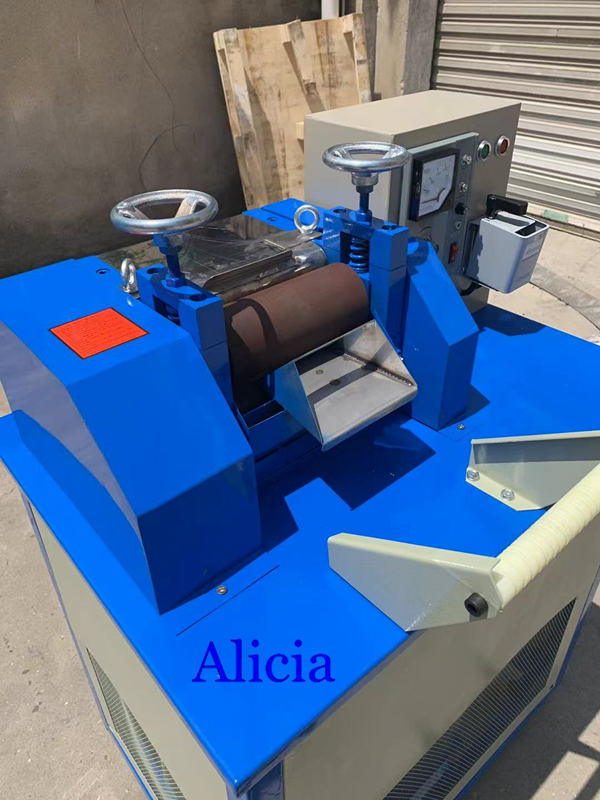

It typically consists of a base, left and right wall panels, a motor, a transmission, a press roller, a roller blade (strip cutter), a flinger blade (pellet cutter), and a sieve. The roller blade rolls the plastic sheet into strips, while the flinger blade and base blade form a shearing assembly to cut the strips into pellets. The sieve is used to select qualified pellets.
Working Principle of Plastic Pelletizer - Plastic Pelletizing Machine
The plastic strands are first cooled and solidified in a water trough cooling system. They are then pulled out at a constant speed by multiple sets of pulling rollers, maintaining a stable tension. Finally, a combination of rolling and fixed blades cuts the strands into pellets of the specified size.
Specifications for plastic pelletizer/plastic pelletizing machine/Plastic Pellets Cutter：

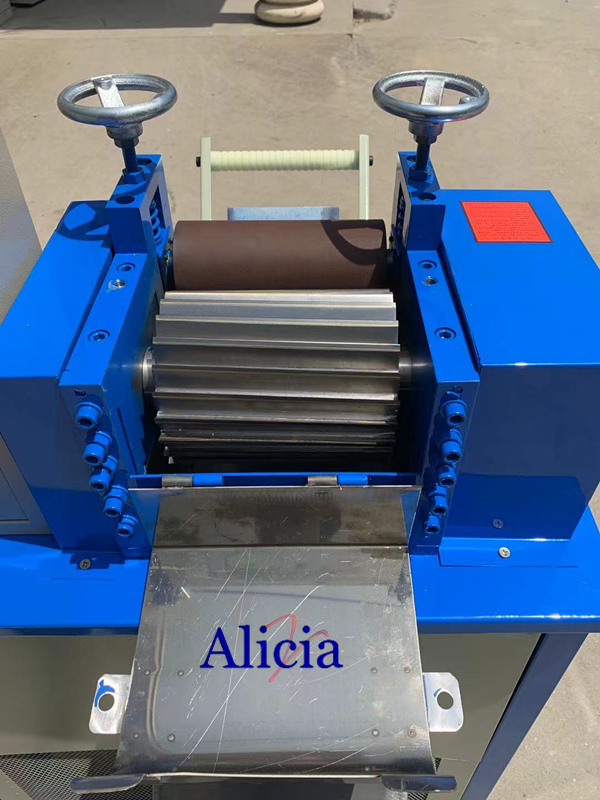

Model：AT-P200 Voltage: 380V/3phase/50hz Motor power: 3kw/4hp ( It is a speed regulating motor and equipped with a speed regulating meter, speed is adjustable) Size of hob: 200mm wide, 160mm diameter, 22 pcs rotary cutters
The body of blade is made of No. 45 steel, and the head of blade is made of alloy steel Stationary Cutters: 1pcs Machine size: 800*850*1200mm Machine weight: 150Kg
By the way, we'd like to explain the differences between our pelletizer and traditional pelletizers:
1. The motor is equipped with an adjustable frequency converter, which allows for electricity savings of between 15% and 35%.
2. The cutting head is made of alloy steel, with a lifespan 3 to 5 times longer than that of traditional blades, saving you replacement costs.
|
Model
|
Monthly energy consumption at fixed frequency (kWh)
|
Monthly energy consumption at variable frequency (kWh
|
Monthly energy savings (kWh)
|
Monthly savings on electricity cost ($)
|
Annual savings on electricity cost ($)
|
|
2HP (1.5kW)
|
312
|
218–249
|
63–94
|
9.5–14.1
|
114–169
|
|
4HP (3kW)
|
624
|
499–530
|
94–125
|
14.1–18.75
|
169–225
|
Our inverter-powered lawnmower saves 15%–35% on electricity compared to standard machines.
Monthly savings: US$9–19
Annual savings: US$110–230
Less wear and tear, longer blade and motor life.
Product Features of Plastic Pelletizer - Plastic Pelletizing Machine
High cutting precision:The cutting speed and tool spacing can be precisely adjusted to ensure consistent pellet size. For example, some machines offer a cutter speed of up to 1000-1500 rpm, resulting in a smooth cut surface. Wide Application: Suitable for a variety of plastic materials, including common plastics such as PP, PE, PET, PVC, PC, and PA. It can also process a variety of waste plastic products, including waste plastic film, woven bags, and beverage bottles.
Stable Performance:Some equipment utilizes a high-torque reduction gearbox design, ensuring smooth and quiet operation. The screw and barrel undergo a special hardening treatment, offering wear resistance and excellent mixing performance, ensuring high production output and long-term stable operation.
High Level of Automation: Modern plastic pelletizers and cutters often utilize PLC control systems, enabling precise adjustment of parameters such as pulling speed and cutter speed, and enabling interlocking control with upstream equipment for easy operation.
Application for Plastic Pelletizer - Plastic Pelletizing Machine
This machine is applicable to composite plastic brace cutting.It is fit for granule cutting of
PP PE ABS PET PS PC PA,PVC,POMetc.Frequency conversion speed control device can be adopted according to the user's requirements.
