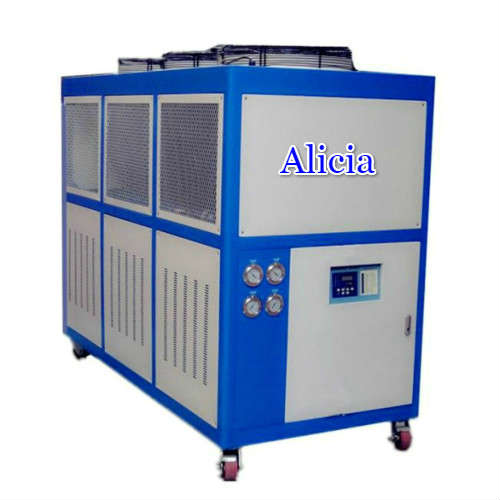

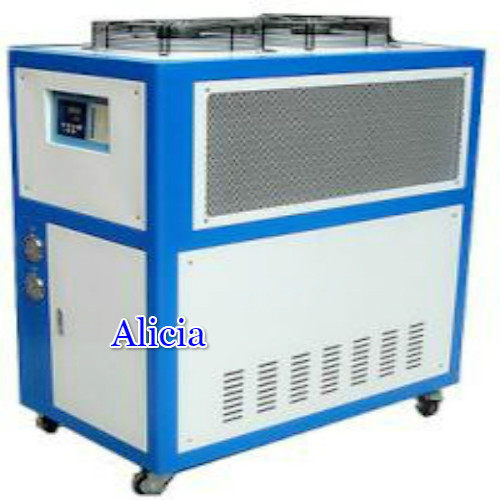

industrial air cooled chiller for irrigation pipes production

Core Application of air cooled chillers used in Irrigation Pipe Production

1. Cooling the Extruded Pipe Blank: After molten plastic is extruded from the extruder mold into a pipe shape, it has high temperature and poor rigidity. The air-cooled chiller provides low-temperature air (or cools the cooling water used in the air ring) to quickly reduce the pipe temperature.
2. Guaranteeing Product Quality: Rapid and uniform cooling prevents the pipe from deforming due to slow cooling (such as wall thickness unevenness or diameter deviation) and enhances the pipe’s pressure resistance and service life—key performance indicators for irrigation pipes.
3. Matching Production Efficiency: It can adjust the cooling capacity according to the extrusion speed. This ensures that the cooling speed keeps up with the production rhythm, avoiding production delays caused by insufficient cooling.

Product Details of air cooled chillers:

 01  Microcomputer LCD Controller

▪ Simultaneously displays the cold water outlet and the set temperature; ▪ Easy to operate with accuracy of controlling water temperature within 3℃ to 50℃.

 02  Famous Band Compressors

Using famous brand Copeland compressor, with lower noise and less vibration, efficient and energy saving.

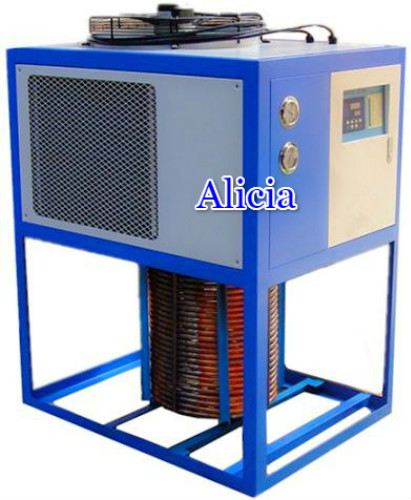

 03  Shell&Tube Evaporators

Shell and tube evaporator adopts high-precision internal threaded copper tube design with larger heat exchanging area for higher efficiency and maximizing system performance.

 04   V Type Finned condensers

With high efficient fin type condenser and silent refrigeration fan, no need to equip cooling water, easy to install.

 05  Water Pump

Advanced stainless steel Oakland water pump, with large working range, low noise, reliable performance and no leakage and maintenance-free.

 06   Aviation Hose

Instead of capillary copper tube, it is resistant to high temperature and high pressure, and will not cause refrigerant leakage due to excessive pressure.

 Applications of air cooled chillers:

Key Selection Criteria of air  cooled chillers

• Cooling Capacity: Determine it based on the pipe’s diameter (from small drip irrigation pipes to large-diameter water supply pipes) and extrusion speed. Larger pipes or faster speeds require higher cooling capacity.
• Temperature Control Precision: The temperature fluctuation range should be controlled within ±1℃. Unstable cooling temperature will lead to inconsistent pipe performance and affect the qualification rate.
• Environmental Adaptability: Since production workshops (especially those for large pipes) may have high ambient temperatures, select a chiller with strong high-temperature resistance (usually suitable for ambient temperatures of 35-45℃) to avoid reduced cooling efficiency.

Advantages Over Water-Cooled Chillers

• No Need for Water Circulation Systems: It does not require a matching cooling tower or water pump, saving workshop space and reducing the cost of water resource procurement and wastewater treatment.
• Simpler Maintenance: There is no risk of scale blockage in water pipes (a common problem with water-cooled systems), which reduces maintenance frequency and avoids production interruptions caused by maintenance.
