Product introduction
A hydroponic chiller is a cooling machine designed for water-based irrigation systems that provides a cooling effect to growing plants through a chilled water cycle.
Hydroponic plants grow at lower temperatures, just as rooted soil plants adapt to lower root temperatures. The hydroponic water chiller meets the temperature requirements of hydroponic plants.
|
Model |
Unit |
AT-5AC |
AT-6AC |
AT-8AC |
|
|
Cooling Capacity |
|
KW |
14.5 |
17.5 |
27 |
|
|
Kcal/h |
12758 |
15054 |
23220 |
|
|
Compressor |
Input Power |
KW |
3.75 |
4.5 |
6 |
|
Rated Power |
HP |
5 |
6 |
8 |
|
|
Power |
|
3PH-380V/50HZ |
|||
|
Evaporator |
Type |
Shell and Tube |
|||
|
Pie Diameter |
inch |
1” |
1” |
2” |
|
|
Refrigerant |
Type |
R22 |
|||
|
Quantity |
KG |
2 |
2.5 |
4 |
|
|
Condenser(air chiller) |
Type |
Finned Copper Tube + Low Noise Outer Rotor Fan |
|||
|
Fan Power |
W |
180*2 |
180*2 |
420*2 |
|
|
Water Tank Capacity |
|
Liter |
45 |
45 |
80 |
|
Pump |
Power |
KW |
0.75 |
0.75 |
1.5 |
|
HP |
1 |
1 |
2 |
||
|
Distance |
m |
35 |
35 |
15 |
|
|
Flow Rate |
L/min |
110 |
110 |
360 |
|
|
Safety Protection |
High and Low Pressure Protection, Overload Protection,Overtemperature Protection, Phase Sequence Protection,etc. |
||||
|
Dimensions(L*W*H) |
|
mm |
1280*680*1225 |
1280*680*1225 |
1550*850*1508 |

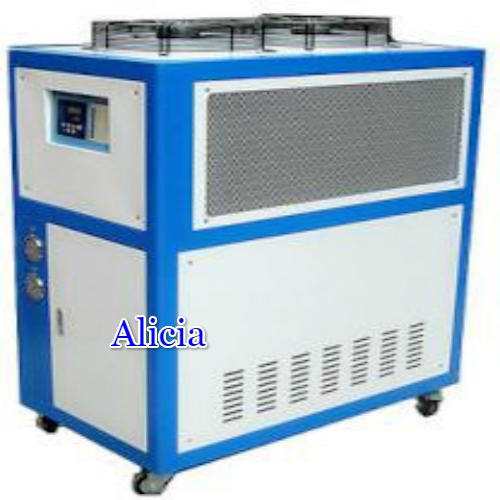

Product Details
The hydroponic chiller provided by Alicia company consists of a scroll compressor, titanium heat exchanger, water tank, titanium evaporator, water pump, automatic protection system, power supply, control system, refrigeration circuit, and Freon-free refrigerant.
The hydroponic chiller provided by Alicia company has the following different advantages in hydroponic irrigation systems:
1. The hydroponic water chiller continuously circulates cooling water through the unit coils around the irrigation system, producing a cooling effect to ensure the regular and efficient growth of hydroponic plants.
2.The hydroponic water chiller provided by Alicia company is equipped with fresh water and salt water devices, and maintains the nutrient level in the aqueous solution provided to aquatic plants through a specialized control system and temperature control system.
3. By providing constant cooling water, the hydroponic chiller can kill insects and prevent the growth of microorganisms that are sensitive to the cooling effect, ultimately preventing plants from being attacked by microorganisms, thereby enhancing product quality.
4 The hydroponic water chillers provided by Alicia company ensure efficient performance and feature titanium coated heat exchangers and evaporators to prevent corrosion and environmental hazards.
5. The hydroponic chillers come with air filters to maintain water filtration, prevent excess salts from entering the water cycle, and ensure a longer life of the tank by removing all clogging materials from the outside of the system.
6. The hydroponic water chillers provided by Alicia company precisely regulate the water temperature as well as the temperature of nutrients required for plant growth and are easy to install.
Applications:
Hydroponic water chillers have been used in the following hydroponics-based applications: grow houses, DWC, aeroponics, aquariums, greenhouses, hydroponic gardens, hydroponic irrigation, etc.
If you want to increase plant yields in areas with scarce soil and want to purchase a hydroponic water chiller to meet your application needs?
If you plan to contact a hydroponic water chiller manufacturing company with standardized credibility to grow your business?
No need to relocate. Alicia company is a highly favored company that fully supports hydroponic systems. Contact Alicia company experts to customize the best hydroponic water cooler for your application at an affordable price.
The Alicia company team is waiting for your response. Our team will satisfy you and answer all your queries regarding the working and installation of hydroponic water coolers.
