Working Principle for air cooled water chiller for optical machines
Air-cooled chillers operate based on the principle of a refrigeration cycle. The compressor compresses the refrigerant to a high temperature and high pressure state, and then the refrigerant enters the condenser. In the condenser, heat is dissipated to the surrounding air through fins and a fan, and the refrigerant condenses into a liquid. The liquid refrigerant then passes through an expansion valve, reducing its pressure and temperature, and enters the evaporator. In the evaporator, the refrigerant absorbs heat from the cooling water, causing the water temperature to drop. The cooled water is pumped to the optical equipment to cool its heat-generating components, and the refrigerant returns to the compressor, completing one refrigeration cycle.
Key Features for air cooled water chiller for optical machines
High-precision temperature control: Many air-cooled chillers used in optical equipment are equipped with a high-precision temperature control system. For example, some series air-cooled chillers offer temperature control accuracy of ±0.1℃. This meets the stringent temperature stability requirements of optical equipment, ensuring its precision and reliability.
Compact Structure: Chillers are typically compact, facilitating installation and relocation. Some models, such as the 5U series, can be placed and fixed in standard cabinets. This is ideal for space-constrained environments such as laboratories or production workshops.
Multiple Protection Functions: Equipped with multiple safety protection devices, such as compressor overheat protection, overcurrent protection, high and low pressure protection, and over-temperature protection, these chillers ensure safe and stable operation and protect optical equipment from damage caused by abnormal temperatures or other malfunctions.

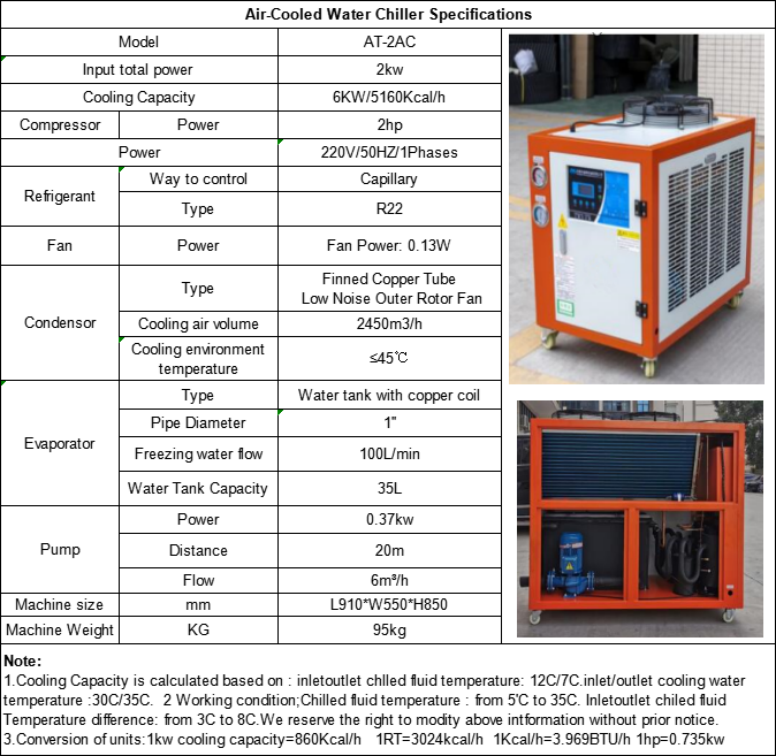

Quiet Operation: To avoid affecting the normal operation and working environment of optical equipment, air-cooled chillers typically employ low-noise fans and compressors. For example, some air-cooled chillers use ultra-quiet fans to reduce noise interference.Specifications for 2hp air cooled water chiller for optical machines
Applications for air cooled water chiller for optical machines
Widely used in various optical machines, including laser processing equipment, atomic absorption spectrometers, spectrometers, mass spectrometers, X-ray fluorescence spectrometers, X-ray diffractometers, scanning electron microscopes, and transmission electron microscopes.
